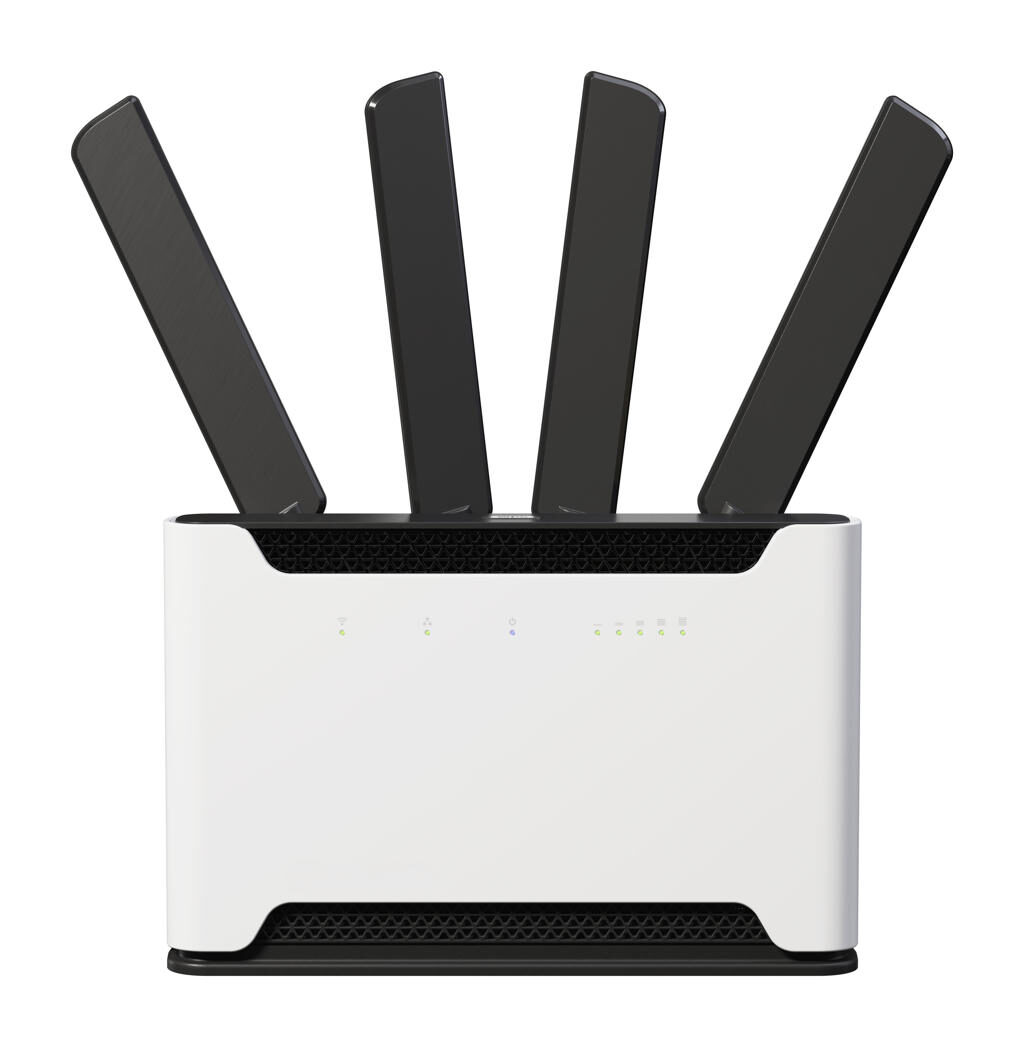

The SimRush Chateau 5G AX is part of the new line of AX enabled wireless systems, this is an indoor all-in-one wireless controller / router for your network.
It has 2 externally connected 5G antennas to connect to the 5G network, additionally there are two external AX wireless antennas for improved coverage. This unit also features a single 2.5Gbps ethernet port on port 5 for increased LAN throughput.
It is pre-configured out of the box and managed through the SimRush web portal SPanel. To get online, simply turn on the device as instructed below.
Please note that the SIM is pre-installed in the bottom of the unit.
Instructions:

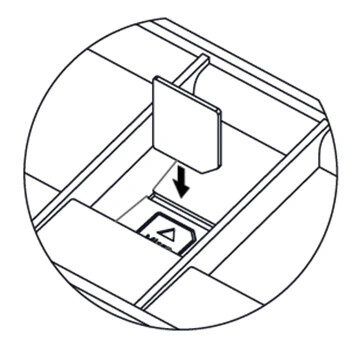

The SIM is installed underneath the unit. If you purchased your device with a SIM it will be installed already
DO NOT POWER ON WITHOUT ANTENNAS CONNECTED
Connecting power to the unit prior to attaching the antenna’s will cause damage to the unit’s radio card.
- Attach supplied antennas to rear of unit DO NOT POWER ON WITHOUT ANTENNAS CONNECTED
- Connect the supplied power adaptor (24v 1.2a DC) to the round DC port on the left side of the unit.

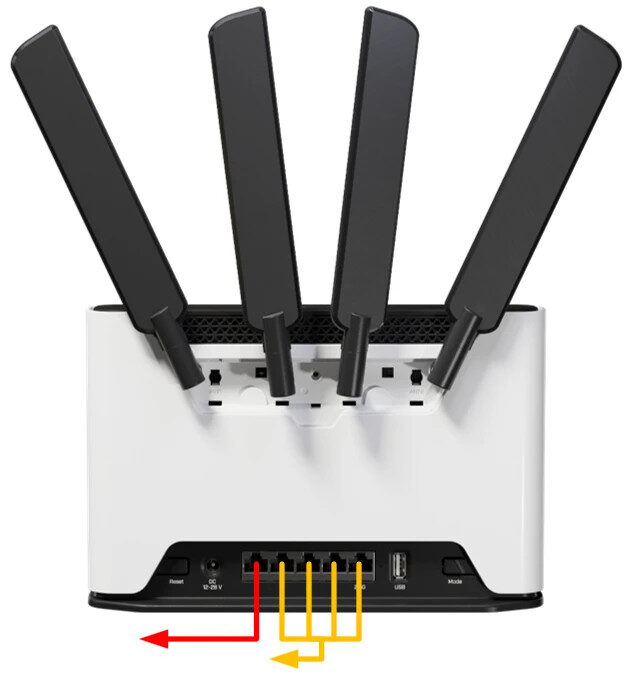

- Connect your PC to any LAN port 2, 3, 4 or 5 ( Highlighted in ORANGE )
- Ethernet port Wireless – Default wireless is “SimRush-xxxxxx” and the Serial number as the password, e.g AABBCC112233 – Serial number is located on the box or back of the controller, all characters before the “/123”
- To make changes to the LAN address or Wireless settings, please visit NetPanel.
- (OPTIONAL) Connect your alternative broadband to utilise the built-in Load-Balancing feature, connect Ethernet Port1 ( Highlighted in RED ) to your alternative broadband network.
Please ensure your alternative broadband router is providing the following network via DHCP:
Gateway: 192.168.1.1 , Subnet: 255.255.255.0
Cable guide
| SimRush Chateau 5G AX | |
|---|---|
| Ether1 – Red | AUX1 |
| Ether2 – Yellow | LAN |
| Ether3 – Yellow | LAN |
| Ether4 – Yellow | LAN |
| Ether5 – – Yellow | LAN |
| PSU | 24v 1.5a |
