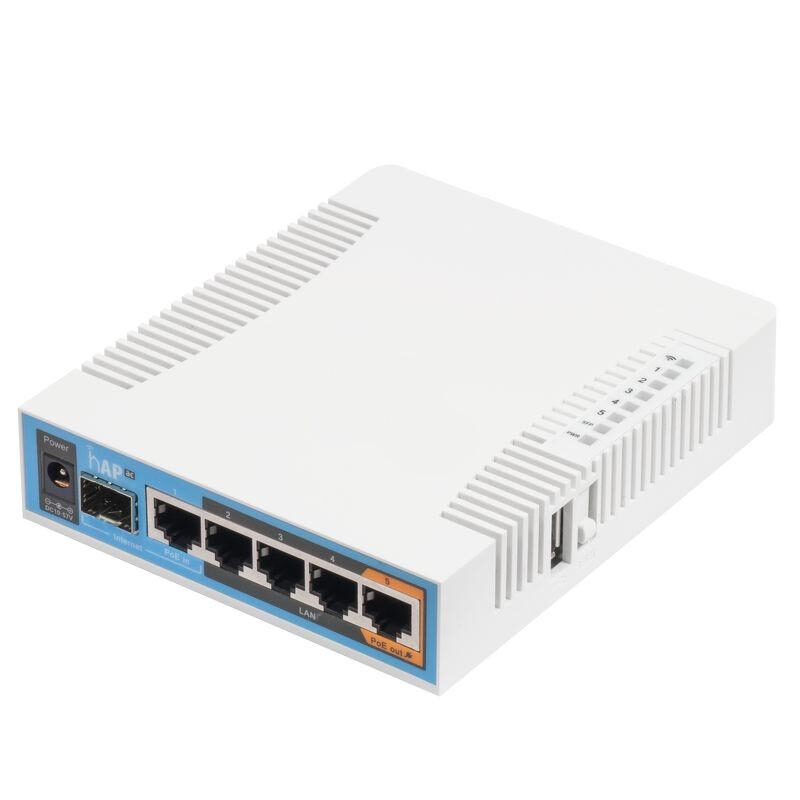

The AP One+ provides dual chain 2.4ghz and triple chain 5GHz, dual band WiFi via a 360-degree antenna beam.
It’s ideal for getting WiFi to those hard-to-reach areas in your home or small business.
The 5 available gigabit LAN ports also enable you to connect wired devices too along with a single SFP cage for supported 1gb modules.
It can also be wall mounted for discrete installation.
The AP One+ can be powered from the power jack or with passive PoE from a PoE injector.
The power adaptor is included.
It can also power other PoE capable devices with the same voltage as applied to the unit through the PoE function from port 5.
Instructions:
⚠️ The SimRush Access Points are centrally managed by the SimRush Controller and configured via the cloud management platform – SPanel. They are not stand alone wireless access points which requires a controller.
The unit is preconfigured to connect to the SimRush Controller which manages the wireless centrally via SPanel.
- Unbox the access point and follow the cable guide below
- Power the unit via the supplied PSU or via a PoE Switch
ℹ️ We would recommend using Port 1 as the “Uplink” port which connects back to the SimRush Controller. This port also a PoE-in port and can be powered by a compatible PoE Switch.

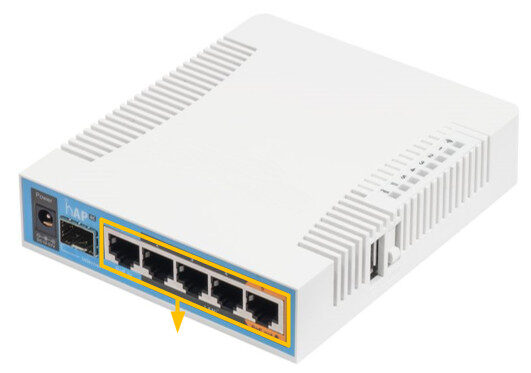

Cable Guide:
