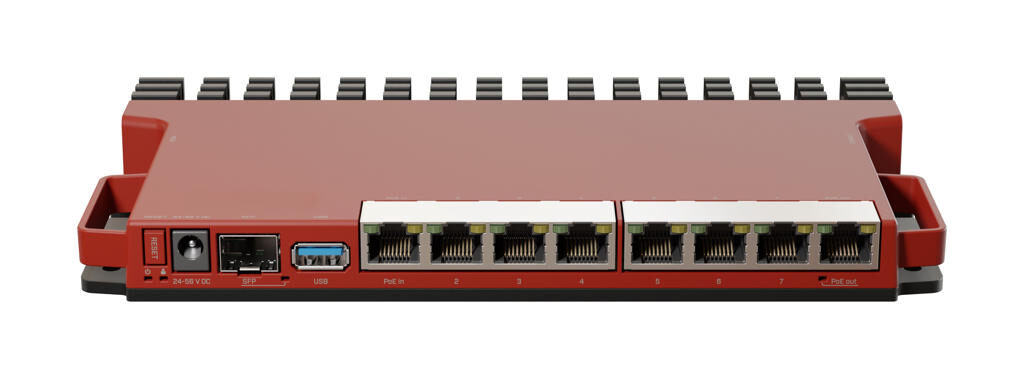

The SimRush L009 is an indoor controller & router for your network.
This model can support up to 2 WAN connections, using the AUX port for existing connectivity and the ODU port.
The unit also has a 1Gb SFP cage for LAN fibre connectivity.
You can optionally use the 5G Omni on the ODU port, It is advised with the 5G unit to be powered separately as the port provides 48v Passive PoE rather than 802.3af if the controller is powered with a 48v source.
It is pre-configured out of the box and managed through the SimRush web portal SPanel. To get online, simply plug in your SimRush Outdoor unit (ODU) as instructed below.
ℹ️ Note that this model does not have built-in WiFi, additional hardware required
Instructions:
Make sure you follow the following steps to get online.
- Connect the ethernet cable to Ethernet Port 8 for ODU1 (far left ports – Highlighted in GREEN)
- Connect the Controller to the power adaptor supplied (24v 1.5a DC)
- Connect your PC to the LAN (Highlighted in ORANGE )
- Ethernet port 2-7 and SFP
- Wireless – Default wireless is “SimRush-xxxxxx” and the Serial number as the password, e.g AABBCC112233 – Serial number is located on the box or back of the controller, all characters before the “/123”
- To make changes to the LAN address or Wireless settings, please visit NetPanel:
- (OPTIONAL) Connect your alternative broadband to utilise the built-in Load-Balancing feature, connect Ethernet Port 1 ( Highlighted in RED ) to your alternative broadband network.
ℹ️ Please ensure your alternative broadband router is providing the following network via DHCP:
Gateway: 192.168.1.1 , Subnet: 255.255.255.0

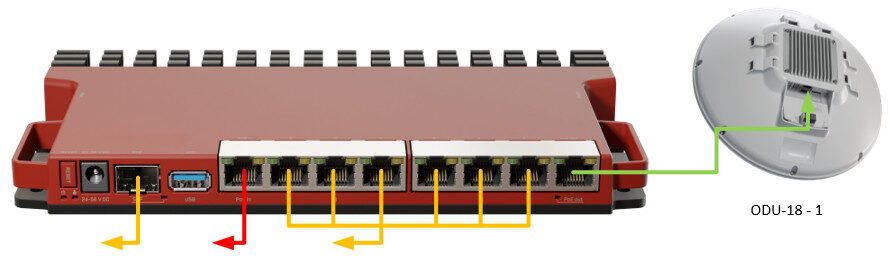

Cable guide:
Outdoor unit may vary from that of image, but the port to connect the ethernet cable in remains the same.
| SimRush L009 | |
|---|---|
| Ether1 | AUX1 |
| Ether2 | LAN |
| Ether3 | LAN |
| Ether4 | LAN |
| Ether5 | LAN |
| Ether6 | LAN |
| Ether7 | LAN |
| Ether8 | ODU1 |
| SFP1 | LAN |
| PSU | 24v 1.5a |
