The M1 Office Switch has eight gigabit ethernet ports and offers several different power output options:
- autosensing 802.3af/at PoE/PoE+ and,
- Passive PoE
It also offers four SFP ports to provide optical fibre connectivity options to support uplinks of up to 1Gbps.
Included with the switch is a 28V 3.4A power supply.
There is a secondary DC jack on the back of the enclosure that supports 48-57V power supply (48V power supply not included, can be purchased separately).
M1 Office Switch can power 802.3af/at devices if 48-57 V DC input is used as the unit will automatically detect and provide correct power to devices.
Max current is 1A per port if input voltage is 18-28 V, 450 mA if 48-57 V.
Total limit is 2.8A@24V and 1.4A@48-57V.
This switch can be desktop or rack mounted for discrete installation.
Instructions:
The unit is preconfigured to connect to the SimRush Controller which will show its online status via SPanel.
- Unbox the access point and follow the cable guide below.
- Power the unit via the supplied PSU.
- Connect devices to switch as desired.
ℹ️ We would recommend using Port 1 as the “Uplink” port which connects back to the SimRush Controller.
Powering:
This unit is powered by 24v DC via a DC power jack, it also supports a secondary DC jack for 48v Input
The PSU is supplied with the unit at 24v 2.5a 60w.
This unit supports PoE Output of 24v Passive and 48v 802.3af/at (when additional 48v PSU is installed) standards on all 8 ports.
⚠️ This unit does not support 48v (802.3af/at) output as standard.
To supply 48v (802.3af/at) to your PoE devices, an additional PSU 48v input is required (Purchased separately).

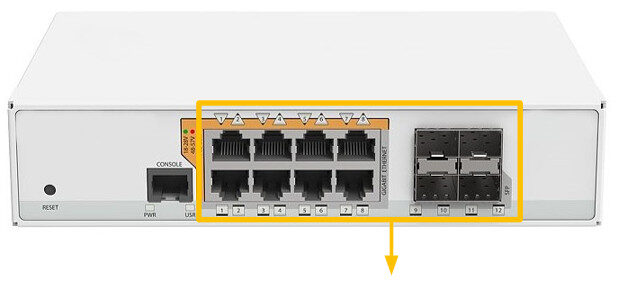

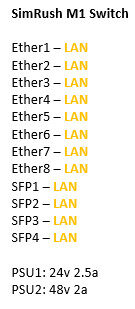

Cable Guide:
