Brief overview/intro of the hardware and the items required for setup.
What’s required to complete setup:
- 1.2a Power supply
- 3m ethernet cable
- SimRush hardware unit
- XXXXX
Instructions:
The unit is preconfigured to connect to the SimRush Controller.
- Unbox the access point and follow the cable guide below.
- Power the unit via the supplied PSU.
- Connect devices to switch as desired.
ℹ️ We would recommend using Port 1 as the “Uplink” port which connects back to the SimRush Controller.
Powering:
This unit is powered by 240v AC via a IEC cable to the built in PSU, it also supports a secondary DC jack for 48v Input.
This unit supports PoE Output of 24v Passive and 48v 802.3af/at (when additional 48v PSU is installed) standards on all 8 ports.
⚠️ This unit does not support 48v (802.3af/at) output as standard.
To supply 48v (802.3af/at) to your PoE devices, an additional PSU 48v input is required (Purchased separately).

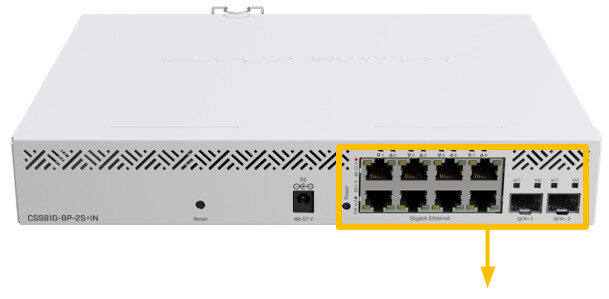

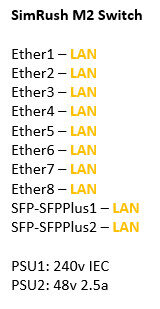

Cable Guide:
