The SimRush 5009 series offers a wide range of features.
Key Features for the Indoor model
- Wall Mountable
- 5x 1Gbps LAN ports with PoE out support at 48v 802.3af
- 1x 10Gbps SFP cage for SFP+ support for LAN connectivity
- Dual input for DC 24-57v on a PSU or terminal connector on the side for direct DC input
- PoE Out support for both ODU ports
- ODU1 port supports 2.5Gb ethernet when connected to the SimRush 5G Omni
- PoE out Support on all LAN ethernet ports
Key features for the Outdoor model
- Wall or Pole mountable
- IP66 rated encloser with cable entry glands
- 5x 1Gbps LAN ports with PoE out support at 48v 802.3af
- 1x 10Gbps SFP cage for SFP+ support for LAN connectivity
- DC 24-57v direct terminal input – Optional external 240v AC to 53v DC PSU available.
- PoE Out support for both ODU ports
- ODU1 port supports 2.5Gb ethernet when connected to the SimRush 5G Omni
- PoE out Support on all LAN ethernet ports
The SimRush 5009 series offers versatility in both Indoor and Outdoor deployments.
The SimRush 5009 External model can be externally mounted to a wall or pole mounted as the case is rated at IP66.
The benefits of this external solution gives you the flexibility of not requiring a IP rated comms cabinet at a site or if you need to rapidly deploy onto a site where there are no permeant buildings e.g. a lighting trailer for a construction site for deploying CCTV lowering the installation cost for externally rated comms cabinets.

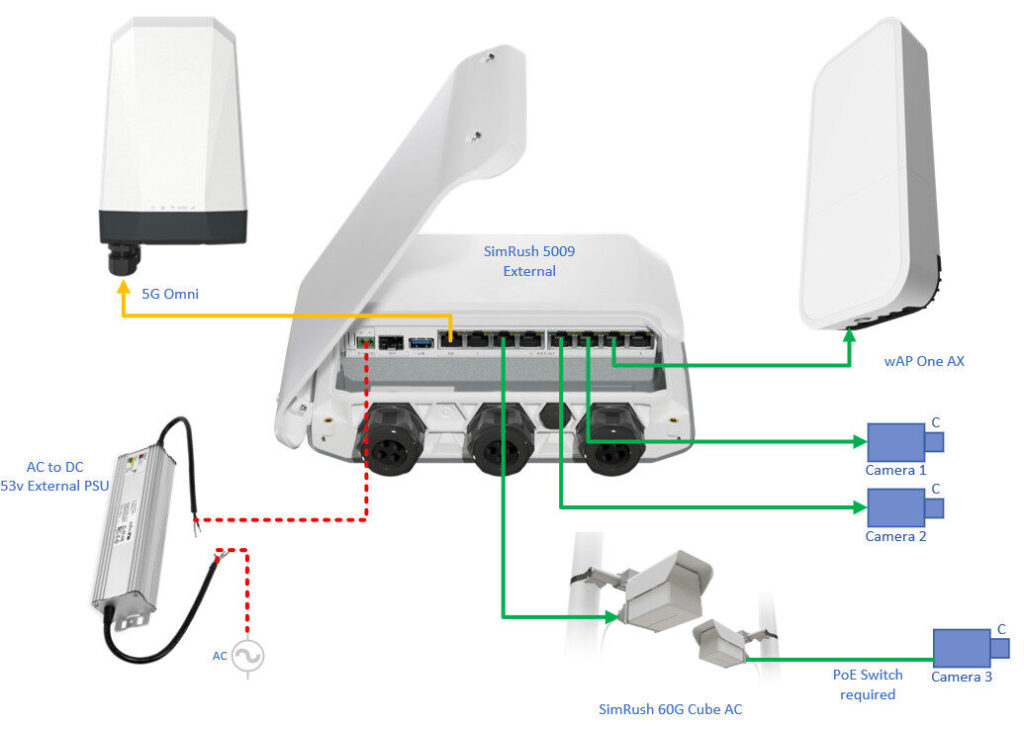

Example external solution for 5G connectivity providing wireless connectivity and building to building link for extending the CCTV camera coverage.
